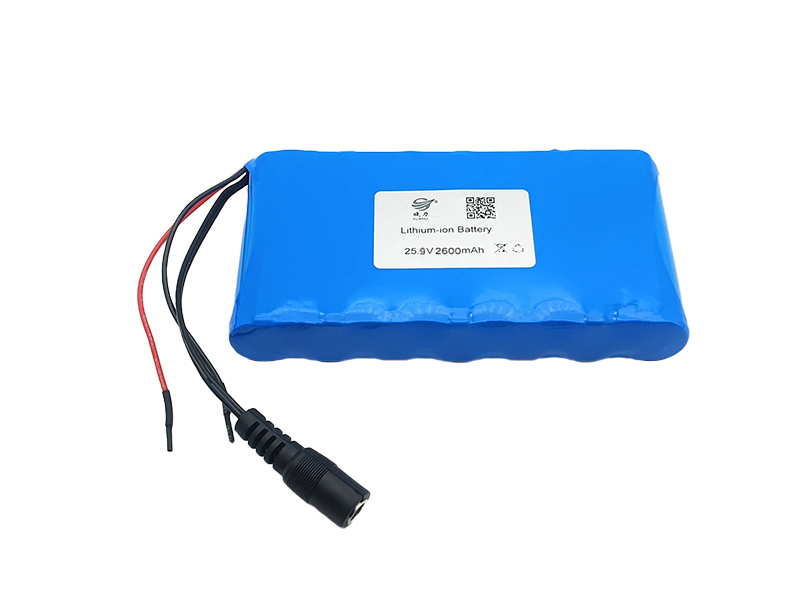

25.9V cylindrical lithium battery product model: XL 25.9V 2600mAh
Technical parameters of 25.9V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
· Single cell battery voltage: 3.7V
· Nominal voltage of the battery pack after combination: 25.9V
· Capacity of a single cell: 2.6Ah
· Combination method: 7 series 1 parallel
· Voltage range of the combined battery: 19.25~29.4V
· Capacity of the combined battery: 2.6Ah
· Battery pack power: 67.34Wh
· Battery pack size: 20*130*71mm
· Maximum discharge current: <3A
· Instantaneous discharge current: 6~12A
· Maximum charging current: 0.2~0.5C
· Number of charge/discharge cycles: >500 times
· Main chips: (Seiko, TI)
25.9V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
